Quad-Vision 1.0 — intelligent, modular drone platform with image recognition
Lightweight yet robust FPV/research quadcopter for real-time vision and telemetry.
Quick facts
Weight
~367 g / 542 g (AUW)Flight time
6–12 minutesFrame
5" carbon (True-X)Video
Walksnail Avatar HD
Edge: Raspberry Pi Zero 2 W
FC: Kakute F405/F722
ESC: 45A BLHeli-S
Motors: 2207 1750KV
Prop: 5×3.6–5×4.3

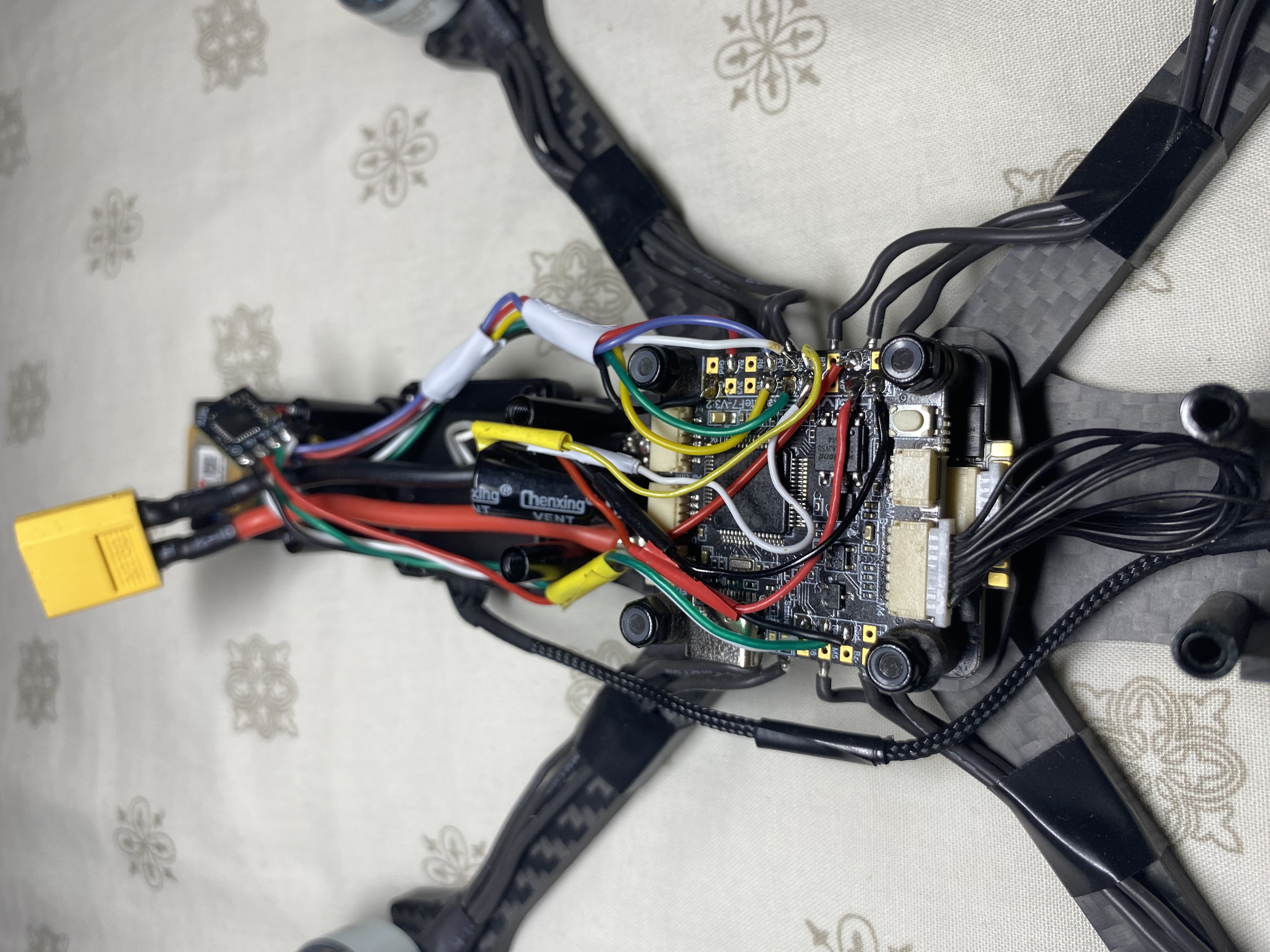

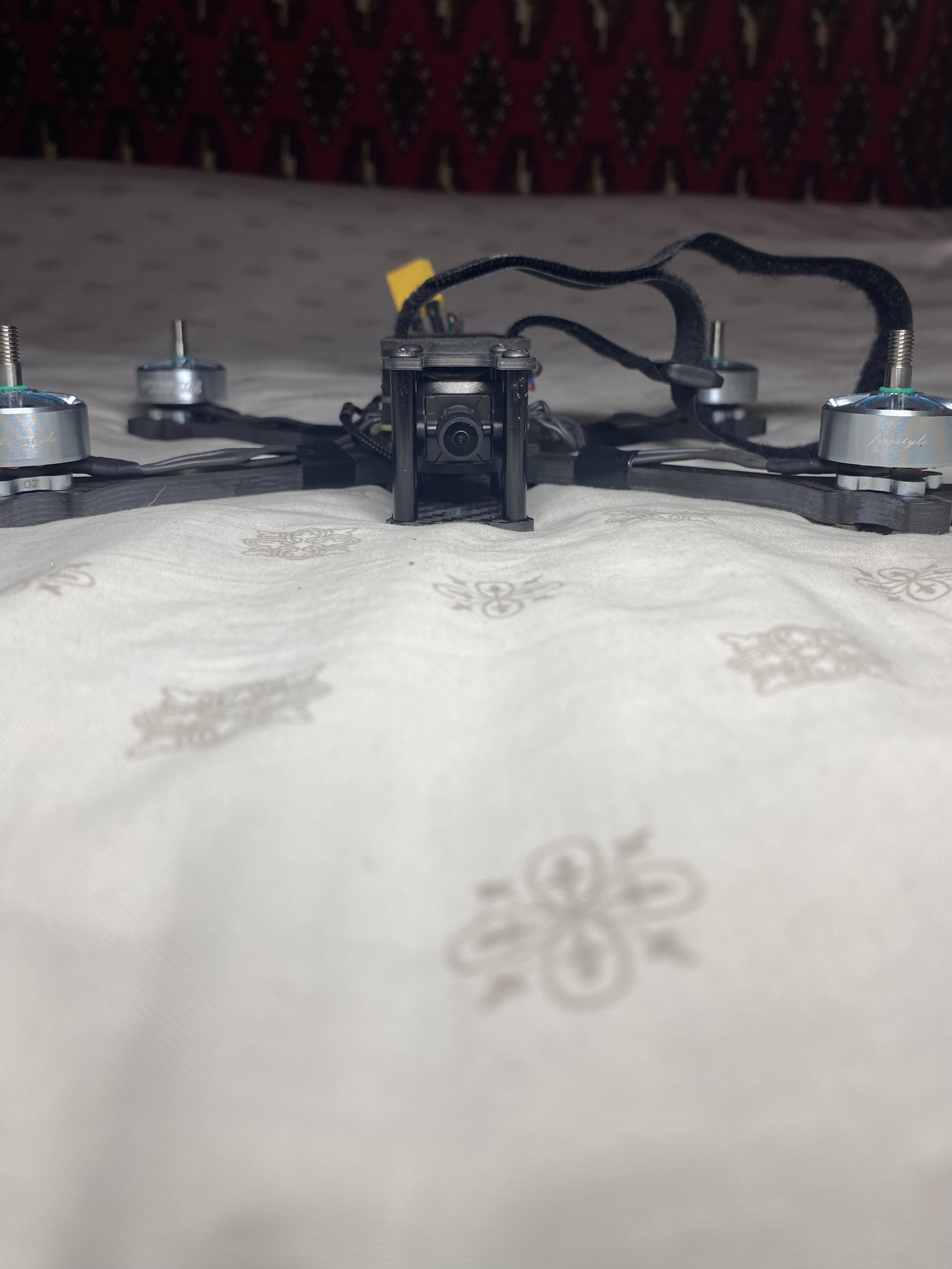

Gallery
List of components
- Frame: TBS Source One 5" Frame V5.1
- Motors: T-Motor Pacer V2 P2207 1750KV Freestyle
- Propellers: HQProp ETHIX P3B 5.1×3×2
- Stack (FC & ESC): Kakute F722 + Tekko32 F4 50A (Holybro, refurbished)
- Digital camera: Walksnail Avatar HD Nano Kit V3
- Receiver: RadioMaster ELRS 2.4G RP1 V2 Nano
- Controller: RadioMaster Zorro-ELRS
- FPV goggles: Walksnail Avatar HD Goggles L
- GPS & Compass: Matek GNSS & Compass M10Q-5883
- Battery: CNHL Black Series V2.0 — 1500 mAh 4S 130C
- Current limiter: TBS Smoke Stopper
- Other: XT60 cable, 35V 1000 µF filtering capacitor
